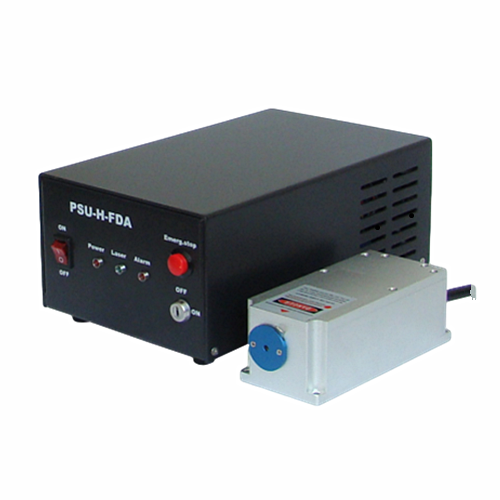

Narrow linewidth 457nm blue laser for instrument
Get Latest PricePayment Type: | T/T |
Incoterm: | EXW |
Min. Order: | 1 Bag/Bags |
Transportation: | Air |
Port: | Beijing,Shenzhen,Xiangggang |
Payment Type: | T/T |
Incoterm: | EXW |
Min. Order: | 1 Bag/Bags |
Transportation: | Air |
Port: | Beijing,Shenzhen,Xiangggang |
Model No.: MLL-U-457
Brand: CNI
Status: New
Warranty: 1 Year
Customized: Customized
Standard Component: Standard Component
Kind: Other
Wavelength (nm): 457±1
Beam Divergence, Full Angle (mrad): <1.5
Polarization Ratio: >100:1 Vertical±5 Degree
Operating Temperature (℃): 10~40
Beam Diameter At The Aperture: 0.70±0.05
Selling Units | : | Bag/Bags |
Package Type | : | Static free plastic bag and carton, Protective packing |
Picture Example | : |
457nm 400mw Low Noise Laser features with ultra compact, long lifetime, cost -effectiveness and easy operating. And its application includes collimation, Laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc. The power stability (over 4 hours) is <1%, <2% , <3%, <5% optional. The transverse mode is TEM00 and the beam diameter at the aperture is nearly 1.5mm. The beam height from base plate is nearly 27.4 mm. The warm-up time is less than 10 minutes and the M2 factor is less than 1.5. Otherwise, the warranty is within one year and the working temperature is between 10-40. The expected liftime is about 10000 hours.
CNI aslo have other wavelengths lasers, such as 532nm. CNI offers the diverse of 532 nm laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 20 W available. For Q-switched operating mode lasers, the High Power Laser series is up to 500 W available, and High Energy Laser series is up to 1000 mJ available.
Model MLL-U-457 Wavelength (nm)
457±1
Transverse mode
TEM00
Output power (mW)
>1, 5, 10, 20, - , 150 >150, - , 400
Power stability (rms, over 4 hours)
<1%, <2%, <3%
<2%, <3%, <5%
M2 factor <1.5
Operating mode
CW
Beam divergence, full angle (mrad)
<1.5
Beam diameter at the aperture (1/e2,mm)
0.70±0.05
Warm-up time (minutes)
<10
Beam height from base plate (mm)
27.4
Operating temperature (℃)
10-40
Polarization Ratio
>100:1, Vertical±5 degree
Pointing stability after warm-up (mrad)
<0.05
Max. Laser Head Base plate Temp (°C)
50
Spectral linewidth (nm)
<0.003
Noise of amplitude (rms, 1Hz~20MHz)
<0.5%, <1%
Laser head consumption(W)
15 (typical) , <25 (40℃)
Power supply (90-264VAC)
PSU-W-FDA
Modulation option
TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional
Expected lifetime (hours) 10000
Warranty
1 year
Certification
Copmpany Information
Changchun New Industries (CNI), founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. CNI possesses accountable and dependable service as well as quality products with compact design, high reliability, excellent performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, entertainment, radar communication, material processing, process control, online detection, investigation equipment and other fields.
