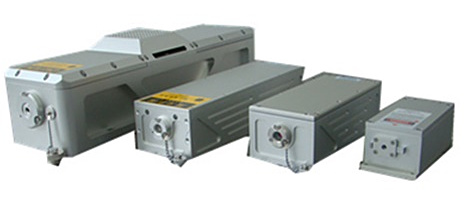

High Energy Pulsed Laser

  The High Energy Laser with high single pulse energy 450mJ for 532nm, and 20J for 1064nm. With low jitter less than 1ns and short pulse duration which you can see here, these lasers are always used in Laser processing and cleaning, medical treatment and scientific research.

  With the perfect performance we have got more and more orders from customers used in laser ranging, PIV fluid measurement, electro-optical countermeasure, LIBS and laser processing application.

Specifications

Wavelength (nm)	Model	Single pulse energy (mJ)	Rep. rate (Hz)	Pulse duration (ns)	Cooled method	Data sheets
266
	DPS-266-Q	2-5	1-100	<10	Water cooled
355
	DPS-355-PS	10-40 uJ	0-1000 kHz	<15 ps	Water cooled
	DPS-355-E	1-2	1-50	<4	Conduction/ Air cooled
	DPS-355-Q	2-10	10-100	<10	Water cooled
	LPS-355-S	20-80	1-10 (<20Hz optional)	<10	Water cooled
	LPS-355-L	80-200	1-10 (<20Hz optional)	<10	Water cooled
532	EO-532-G M²<1.2	0.2-0.5	1Hz-25 kHz	<15	Air cooled
	EO-532-H M²<1.5	0.3-0.5	1-10 k	<10	Conduction/ Air cooled
	EO-532-N	0.5-2	1Hz-25 kHz	<12	Air cooled
	DPS-532-PS	10-60 uJ	0-1000 kHz	<15 ps	Water cooled
	DPS-532-H M²<1.5	1-10	1-1000 (<200kHz optional)	<4	Water cooled
	DPS-532-E Narrow pulse width	1.5-4	1-50	<4	Conduction/ Air cooled
	DPS-532-A	1-5	1-10	<10	Air cooled
	DPS-532-B	5-15	1-10	<10	Air cooled
	DPS-532-BS-D	15-50	1-20	<10	Air cooled
	DPS-532-Q High rep.rate	2-20	1-1000	<12	Water cooled
	DPS-532-J	1-20	1-20	~10	Air cooled
	LPS-532-A	30-100	1-10	~12	Water to air cooled
	LPS-532-S	30-150	1-10 (<20Hz optional)	~10	Water cooled
	LPS-532-L	200-450	1-10 (<20Hz optional)	~10	Water cooled
1064	EO-1064-G M²<1.2	0.5-1	1Hz-25 kHz	<15	Air cooled
	EO-1064-H M²<1.5	1-2	1-10 k	<10	Conduction/ Air cooled
	EO-1064-N	1-3.5	1Hz-25 kHz	<13	Air cooled
	DPS-1064-PS M²<1.3	30-150 uJ	0-1000	<15 ps	Water cooled
	DPS-1064-H M²<1.5	1-30	1-1000 (<200kHz optional)	<5	Water cooled
	DPS-1064-D	0.5-2	1-100	<10	Air cooled
	DPS-1064-E Narrow pulse width	3-8	1-50	<4	Conduction/ Air cooled
	DPS-1064-P-Mini	6	10/ 20 EXT (adjustable)	3±1	Conduction cooled
	DPS-1064-A	1-10	1-10	~10	Air cooled
	DPS-1064-B	10-30	1-10	<10	Air cooled
	DPS-1064-BS-D	30-100	1-20	<10	Air cooled
	DPS-1064-Q High rep.rate	5-40	1000	~12	Water cooled
	DPS-1064-J  Harsh condition	1-40	1-20	~10	Air cooled
	LPS-1064-A	50-200	1-10	~10	Water to air cooled
	LPS-1064-S	50-300	1-10 (<20Hz optional)	~10	Water cooled
	LPS-1064-L	350-1000	1-10 (<20Hz optional)	~10	Water cooled
	LPS-1064-M Long pulse	1 J-10 J	1-20	0.1-20 ms	Water cooled
1573	DPS-1573-A	1~2	1-10	~10	Air cooled
	DPS-1573-Q	5-20	1-20	~10	Water cooled
2940	LPS-2940-S	100-200	1-5	0.9 ms	Water cooled

Measurement Data

Energy 10.5 J	Pulse duration 10.5 ns

Related Products

 high energy lasers

 100mw laser

 Green Laser 532nm

 high energy laser

 Q switch lasers

 405 laser

 Microscopy Laser

 1064nm laser

 photodynamic therapy laser

 Single mode laser

Certifications

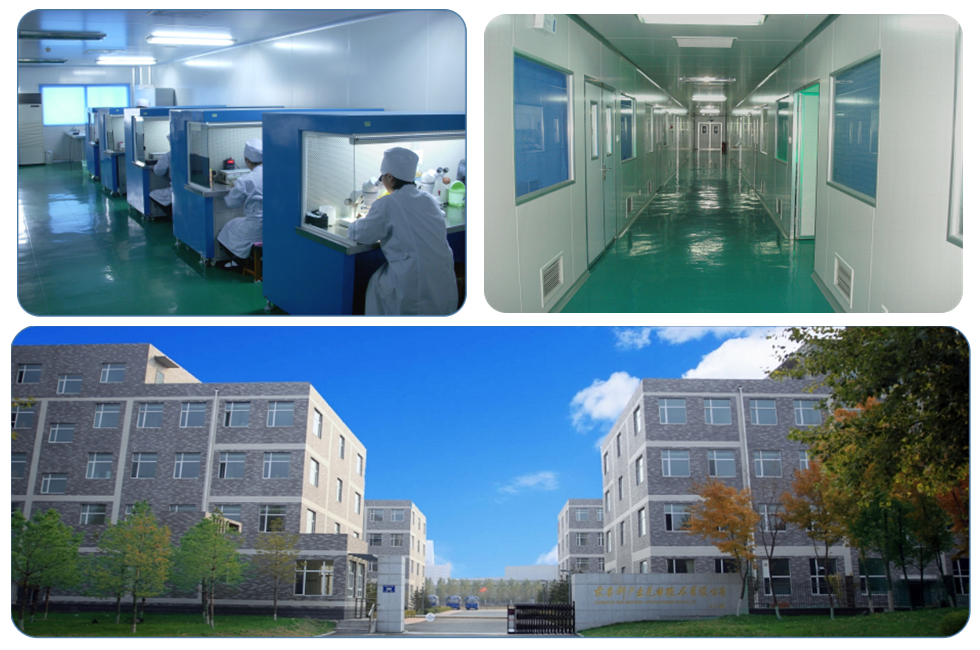

Copmpany Information
