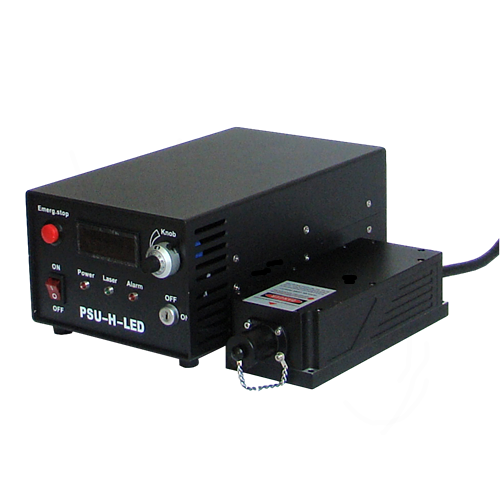

Orange High Stability Laser
Orange High Stability Laser
Orange High Stability Laser
  • Orange High Stability Laser
  • Orange High Stability Laser
  • Orange High Stability Laser

Orange High Stability Laser

    Payment Type: T/T,Western Union
    Incoterm: EXW
    Min. Order: 1 Piece/Pieces
    Delivery Time: 30 Days

Product Description

CNI provide the orange High Stability Laser wavelength from 561nm to 607nm. All solid state orange Laser is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientifi experiment, optical instrument, etc.

CNI also provide the UV Laser, Blue Laser, violet blue laser, Green Laser, Yellow Laser, Red Laser and infrared laser.

111Features:

  • Beam spot pattern: TEM00
  • M²: <1.1
  • Power stability (RMS@4h,23±3℃): <0.1%, 0.3%, 0.5%, 1%.
  • Pointing stability (2h,23±3℃): <0.05 mrad
  • Output power adjustable, LCD
  • Control method: TTL modulation, analog modulation, RS232
    interface control

111Application:11111111111111111111111111111

  • Medical diagnosis, confocal microscopy
  • Optical instrument, scientific research
  • Testing and control, direction-finding and instruction
  • Laser printer, laser show
  • Chip inspection, Ion velocity testing
  • Spectrum analysis, DNA sequency
Spectificatios

Model

Wavelength

Output power

Power stability

Data sheets

MGL-FN-561

561

1~1000 mW

<1%

MGL-FN-561-AOM

561

1~100 mW

<1%

MGL-N-561

561

200~1000 mW

<3%

MGL-W-561

561

1000~2000 mW

<3%

MGL-S-577

577

1~30 mW

<1%

MGL-U-577

577

1~500 mW

<1%

MGL-F-577

577

1~600 mW

<1%

Green laser

MGL-FN-577

577

600~1200 mW

<2%

Green laser

MGL-W-577

577

1200~3500 mW

<3%

MGL-SM-589

589

1~20 mW

<1%

MGL-S-589

589

1~50 mW

<1%

MGL-III-589

589

1~50 mW

<2%

MGL-F-589

589

50~300 mW

<1%

MGL-FN-589

589

300~500 mW

<1%

MGL-N-589

589

500~800 mW

<3%

MGL-W-589
589
800~4500 mW
<3%

MGL-III-593.5
593.5 1~30 mW <3%
MGL-F-593.5
593.5 50~100 mW <3%
MGL-N-593.5
593.5 200~300 mW <3%
MGL-W-593.5
593.5 400~800 mW <3%
MRL-FN-604
604 1~100 mW <3%
MRL-FN-607
607 1~400 mW <3%

High Stability Diode Laser Sorce High Stability CW Laser

Certification

uv laser applications

Copmpany Information

CNI owns the strong core technologies in lasers, laser systems, optical spectrum analyzer, teaching and laboratory equipment, optical measuring equipment, laser processing equipment, machine vision and the photoelectric detection. There are over 120 technical engineers engaged in the R&D and production, 65 patents and lots of successfully international cooperation projects. The powerful technical strength makes the possibility to serve the customers complete solutions for lasers and laser products

Exhibitions

Looking for ideal Orange High Power Stability Laser Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the High Stability Laser are quality guaranteed. We are China Origin Factory of HIgh Power Stability Diode Laser. If you have any question, please feel free to contact us.
