405nm Laser Diode
Get Latest PricePayment Type: | T/T |
Incoterm: | FOB,EXW |
Min. Order: | 1 Bag/Bags |
Transportation: | Air |
Port: | Beijing,Shenzhen,Hong Kong |
Payment Type: | T/T |
Incoterm: | FOB,EXW |
Min. Order: | 1 Bag/Bags |
Transportation: | Air |
Port: | Beijing,Shenzhen,Hong Kong |
Model No.: MDL-C-405
Brand: CNI
Warranty: 1 Year
Customized: Customized
Standard Component: Standard Component
Kind: Other
Beam Divergence, Full Angle (mrad): <1.5
Operating Temperature (℃): 20-30
Polarization Ratio: >50:1 Vertical±5 Degree
Beam Diameter At The Aperture: ~1.3
Wavelength (nm): 405±1
Place Of Origin: China
Selling Units | : | Bag/Bags |
Package Type | : | Static free plastic bag and carton, Protective packing |
Picture Example | : |
The coherence length is related to the band width of the Laser, 445nm 50mw long coherent is ideal for holography, DNA sequencing, raman spectroscopy, laser radar for long coherent length, stable wavelength and long lifetime. . The warm-up time is less than 10 minutes and the M2 factor is less than 1.5. Otherwise, the warranty is within one year and the working temperature is between 20-30. The expected liftime is about 10000 hours.The power stability (over 4 hours) is <1%, <2% , <3% optional. The transverse mode is TEM00 and the beam diameter at the aperture is nearly 3.0 mm. The beam height from base plate is nearly 30 mm.
As the leading manufacturer and supplier in China, CNI is dedicated to offer best quality lasers , laser systems, High Power Laser, optical measuring equipment, Single Longitudinal Mode Laser, laser processing equipment, High Energy Laser,machine vision and the photoelectric detection equipment.

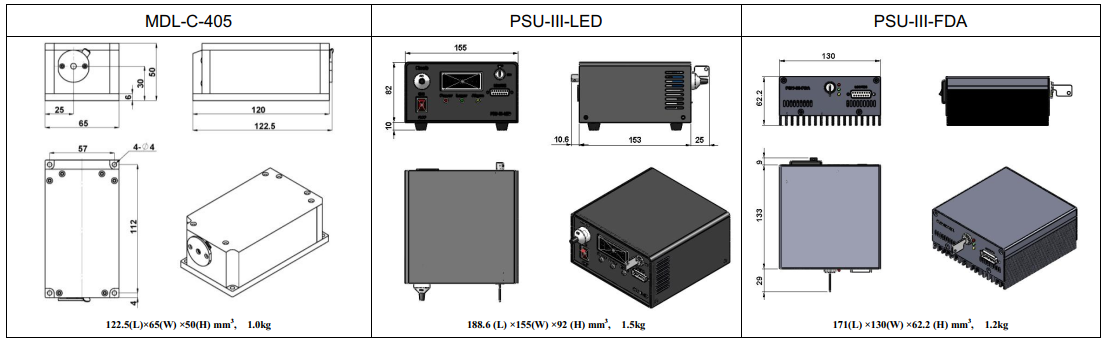

Model MDL-C-445 Wavelength (nm)
405±1
Transverse mode
Near TEM00
Output power (mW)
>1, 2, 3,50 Power stability (rms, over 4 hours) <1%, <2%, <3%
Transverse mode
Near TEM00
Coherent length (m)
>1
M2 factor
<1.5
Beam diameter at the aperture (1/e2,mm)
~1.3
Beam divergence, full angle (mrad)
<1.5
Polarization ratio
>50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional)
Warm-up time (minutes)
<15
Beam height from base plate (mm)
30
Operating temperature (℃)
20~30
Power supply (85-264VAC)
PSU-III-LED/ PSU-III-FDA
Expected lifetime (hours) 10000
Warranty
1 year
Certification
Copmpany Information
CNI owns the strong core technologies in lasers, laser systems, optical spectrum analyzer, teaching and laboratory equipment, optical measuring equipment, laser processing equipment, machine vision and the photoelectric detection. There are over 120 technical engineers engaged in the R&D and production, 65 patents and lots of successfully international cooperation projects. The technical strength makes the possibility to serve the customers complete solutions for lasers and laser products
