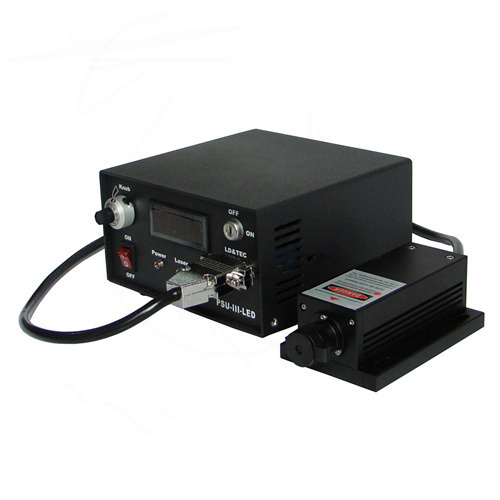

Blue High Stability Laser
Blue High Stability Laser
Blue High Stability Laser
Blue High Stability Laser
Blue High Stability Laser

Blue High Stability Laser

Get Latest Price
Payment Type:T/T
Incoterm:EXW
Min. Order:1 Piece/Pieces
Transportation:Air
Port:Beijing,Shenzhen,Hong Kong
Power (Watts):
Product Attributes

Model No.MBL-***

BrandCNI

StatusNew

CertificationIso, Ce

Mechanical Test ReportProvided

Core Component Warranty Period1 Year

Place Of OriginChina

Core Selling PointEasy To Operate

Warranty Period1 Year

Beam Spot Pattern:Tem00

M²:<1.1

Pointing Stability (2h,23±3℃):<0.05 Mrad

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : Static free plastic bag and carton, Protective packing
Picture Example :
Mode-locked Picosecond Diamond Raman Laser
Laser Light Protection Goggles
Product Description

  CNI provides the blue high-stability Laser with a wavelength range of 430nm - 491 nm.Linear prisms, fiber coupling, Beam Expander and other accessories can be attached. The switch and output power of lasers are controlled by the RS232 interface connected to a computer. With high stability and compact design, the high stability lasers are widely used in light instructions, test and analysis equipment, optogenetics, laser medicine and other fields.

  CNI also provide the Blue Laser, violet blue laser, Green Laser, Yellow Laser, Red Laser and infrared laser. As the leading manufacturer and supplier in China, CNI is dedicated to offer best quality lasers , laser systems, High Power Laser, optical measuring equipment, Single Longitudinal Mode Laser, laser processing equipment, High Energy Laser,machine vision and the photoelectric detection equipment.

111Features:

  • Beam spot pattern: TEM00
  • M²: <1.1
  • Power stability (RMS@4h,23±3℃): <0.1%, 0.3%, 0.5%, 1%.
  • Pointing stability (2h,23±3℃): <0.05 mrad
  • Output power adjustable, LCD
  • Control method: TTL modulation, analog modulation, RS232
     interface control

111Application:11111111111111111111111111111

  • Medical diagnosis, confocal microscopy
  • Optical instrument, scientific research
  • Testing and control, direction-finding and instruction
  • Laser printer, laser show
  •  Chip inspection, Ion velocity testing
  • Spectrum analysis, DNA sequency
Spectifications

Wavelength

Output power

Power stability

Data sheets

430

1~100 mW

<3%

440

1mW~2 W

<3%

442

1mW~8 W

<0.5%

445

1mW~20 W

<1%

447

1mW~20 W

<1%

450

1mW~150 W

<1%

454

1mW~16 W

<1%

Green laser

457

1mW~10 W

<0.5%

Green laser

460

1mW~16 W

<1%

462

1mW~16 W

<1%

465 1mW~16 W
<1%

473

1~2000 mW

<1%

480

1~30 mW

<5%

488

1~200 mW

<1%

491

1~400 mW

<3%

High Stability Diode Laser Sorce    High Stability CW Laser
