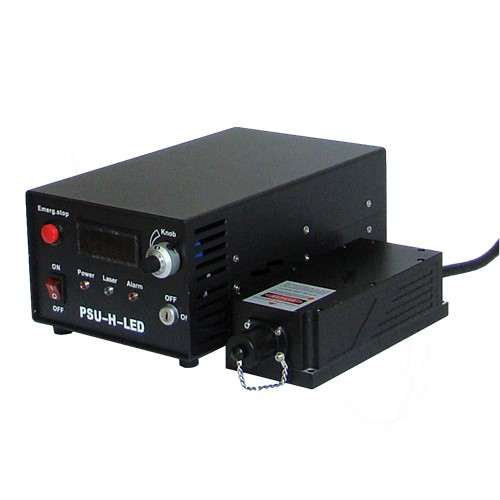

523.5nm Solid State Green Laser
523.5nm Solid State Green Laser
523.5nm Solid State Green Laser
523.5nm Solid State Green Laser
523.5nm Solid State Green Laser
523.5nm Solid State Green Laser

523.5nm Solid State Green Laser

Get Latest Price
Payment Type:T/T
Incoterm:EXW
Min. Order:1 Piece/Pieces
Transportation:Air
Port:Beijing,Shenzhen,Hong Kong
Power (Watts):
Product Attributes

Model No.MSL/MGL/MPL/AO-***

BrandCNI

StatusNew

CertificationCe, Iso

Mechanical Test ReportProvided

Core Component Warranty Period1 Year

Place Of OriginChina

Core Selling PointEasy To Operate

Warranty Period1 Year

Features523.5nm High Output Power Up To 1w, High Quality Laser Beam, Temoo, Robust, Hermetically Sealed Packages, Proven Reliability

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : Static free plastic bag and carton, Protective packing
Picture Example :
c86abd347e712e581c2a8416f9980b8a
f2faa971514e48836ad6d0d93f876085
Product Description

CNI offer 523.5nm solid state  Green Laser with the output power of 1W. The green Laser Diode Module features compact design, long lifetime, cost effectiveness and easy operation. The 523.5nm green high stability lasers vailable with TTL and Analog modulation, and in a wide array of output power and stability levels. These green lasers are specifically designed for fluorescence excitation, Optogenetics, PIV, microscopy, biotechnology, Laser display and a broad spectrum of other applications.

CNI offers the diverse of 532 nm laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 20 W available. For Q-switched operating mode lasers, the High Power Laser series is up to 200 W available, and High Energy Laser series is up to 450 mJ available.



111Features:

  • 523.5nm high output power up to 1W
  • High quality laser beam, TEMOO
  • robust, hermetically sealed packages, proven reliability
  • 12 months warranty

111Application:11111111111111111111111111111111111111

  • Confocal microscopy
  • Scientific experiment
  • Laser lighting show
  • Optical instrument
Specifications


Model Features Datasheet
Single Frequency Laser MSL-III-523.5/ 1~50mW
Linewidth < 0.00001 nm

MSL-FN-523.5/ 50~100mW

Low Noise Laser MLL-FN-523.5 / 1~600mW
High Stability Laser MGL-FN-523.5 / 1~800mW

MGL-N-523.5/ 200~800mW


Q-switched Pulsed Laser
MPL-III-523.5 / 1~10μJ/ 1~50mW


MPL-H-523.5/ 10~60uJ/ 1~150mW


AO-S-523.5 1~50uJ/ 1~100mW Small size

Actively Q-switched Pulsed Laser AO-V-532/ 1~433uJ/ 1~1.3W
